Mastermind

In Mastermind, player one selects a sequence of four colored pegs, and player two makes guesses until she has identified the sequence. There are six colors, and each color may be used more than once. As guesses are made, the feedback provided is: a black peg for each correct color in the correct position, and a white peg for each correct color in the wrong position.

In the example to the right, the program is playing the role of player one. The user of the program made an initial guess of: red, red, green, green. The program evaluated the guess, and returned two black pegs, and one white peg. The second guess was: cyan, cyan, yellow, yellow. The response returned by the program was one black peg.

The feedback from the first guess indicates that the answer contains: two reds and one green, or two greens and one red. From the second guess we know there is exactly one cyan, or one yellow. The two guesses taken together account for all four pegs, so we know there are no blue or magenta pegs.

For the third guess, lets assume there are two reds and one green (from the feedback for the first guess), and one cyan (from the feedback for the second guess). The order we put these colors in should not violate what we know to be true from previous responses. The order chosen for the third guess was: red, cyan, red, green. The evaluation returned one black peg and one white peg.

Since the overlap from the first guesss two possible scenarios is one red and one green, the response in the third guess is telling us: there is one red and one green, there is no cyan, and we made the wrong choice with respect to both the first and second responses. We should have chosen: two greens, one red, and one yellow.

Now that we have identified the colors, we need to work on the order. Every guess needs to be consistent with the feedback from all previous guesses. The ordering (red, green, green, yellow) would have been a valid guess. Instead, the user randomly chose (green, red, yellow, green) and won the game.

The project

Write an implementation of Mastermind that allows a player to play against the computer from the DOS command line. The computer: picks a random sequence of numbers between 0 and 5, prompts for input, evaluates each guess, displays its black and white response, and exits when the black count is equal to four. The black and white counts are displayed as integers on the line following each guess. Validation of input is optional. The program should also return the answer when the user enters the character ‘a’. The project is divided into three iterations:
  1. Prompt for and receive input, supply a default answer
  2. Create a MastermindModel component that computes the "black" response
  3. Compute the "white" response in the MastermindModel

Iteration 1

James Coplien has suggested the following development strategy to balance customer, developer, and organizational dynamics. The idea is that developer morale and organizational control remain high if there is always a program that does something; no matter how trivial that something is. So the first rule is, Make it run. Always have something that works; and then grow the working system. Shortly after the program is running, it needs to be producing correct results. And finally, optimization should be considered. Premature optimization runs the risk of high cost and low payback. Developers have historically performed very poorly at predicting where the "hot spots" of their design will be. Postponing optimization until the hot spots can actually be demonstrated is often wise.
More computing sins are committed in the name of efficiency than for any other single reason - including blind stupidity. [William Wulf] Improved efficiency comes at the cost of practically every other desirable software property. [Martin Carroll and Margaret Ellis]
To this end, start the project by implementing the user interaction functionality. The program needs to: prompt for input, receive input, evaluate the input, supply a default answer, and exit. Instead of dealing with Java's standard input functionality, let's use the following utility. Instructions and issues:

Iteration 2

Now that the framework for client interaction is in place, let's focus on the brains of the application. What remains to be completed is: generate the random sequence, evaluate the "black" response when a guess is submitted, and evaluate the "white" response. The last item is a very interesting puzzle, and will be deferred to iteration 3.

It has been said, "Abstraction is the discipline of creating useful fictions." In this project, it would be nice if we could hide (or delegate): the generation of the random sequence, and evaluating all user guesses. The former is state, and the latter is behavior. A class is the object-oriented mechanism by which we encapsulate or "co-locate" state and behavior.

Encapsulation case study

In 1989, a formula was published for calculating the optimal flight path for an aircraft on final approach. A printing error resulted in an '8' being transposed to a '6'. As the effect of this was minor, the mistake was not picked up for some time. It was only discovered after a number of complaints from maintenance crews about the level of maintenance required due to hard landings.

Three different projects had used the bad formula in developing software segments of landing control systems. Two groups used C++ and object technology, the third used C and structured methods. When it became clear that there was an error in the distributed version of the formula, all three groups were informed and instructed by the authorities to fix their code.

The first group had not used formal class library control approaches. It took them 5 weeks to find every instance of the formula in their code, correct it, and then recompile. The C group had embedded the formula in a set of library functions. They only needed to rework the library functions, recompile, build, and test - about 4 days. The third group had placed the formula inside a set of specially contructed classes that were made available through a class library. They were able to update the formula, recompile only the affected components, build, and test - 1.5 days total.

[Ian Graham, "Reuse: A Key to Successful Migration", Object Magazine, October 1995, p83]

This class will incorporate the core "business logic" of the game. A common label for this type of component is "model". The functionality that will remain in main() will be "user interface" in its orientation. Dividing responsibilities along these lines will allow us in a later chapter to replace the DOS command line user interface with a graphical user interface. At that point, we should be able replace one "look and feel" with another, without having to disturb our "model" component at all.

The goal of this iteration is to support this slightly modified main() and the following output.

Instructions and issues:

Iteration 3

The final piece to this project is computing the "white" response. When a colored peg contributes to the black response (correct color in the correct position), it should not also participate in the white response (correct color in the wrong position). When a peg in the guess is matched to a peg in the answer, both pegs should be set aside so that they are not matched to any other peg. The sum of black plus white can never be more than the total number of pegs. Instructions and issues:

Iteration 1 – implementation

Processing input in a loop

It is not uncommon to find looping code written with input logic replicated before the loop and at the bottom of the loop. The purpose is to allow the loop construct (the for or while statement) to test the initial input, and all subsequent input. This is happening in listing 2.1. For discussion purposes, here is a parallel example.

Replicated code is always a maintenance liability. The only constant in life is change. When the prompt and input functionality requires updating, it will inevitably be changed in fewer places than actually exist. Replication of code should be vigorously avoided. We could choose to combine the input statement and the boolean expression of the while loop. This would seemingly demonstrate our mastery of the language - the return value of an assignment expression is the value received by the left-hand operand. But, it could be well-argued that this is "write only" code - any attempt to subsequently read this code will be an all too viscous experience. Additionally, the prompt functionality continues to be replicated. My preference is to judiciously use the break statement to exit the loop. While some will argue that break is nothing more than a politically correct goto statement, and it violates the standard, single entry, single exit; I believe the code is more readable, because there is less of it to read. Additionally, it satisfies the standard, All code should read from top to bottom. Multiple levels of scope

Two common programming conventions are: code should read from top to bottom; and single entry, single exit. Both of these idioms are used to prohibit use of the goto statement. The second one is also used to discourage use of multiple return statements in a function, and the break and continue statements in a loop. The parse() function of listing 2.1 follows both conventions.

The parse() function in listing 2.2 does not follow the letter of the "single entry, single exit" law, but it does follow the spirit to promote code readability. The code above (from listing 2.1), adds an extra level of scope and indentation. This effectively adds one more ball to the reader's juggling challenge.

It is commonly accepted that humans are only capable of juggling seven simultaneous tasks, concerns, and distractions. The code below (from listing 2.2) removes one of those "balls" by eliminating the need for the else clause, and the compound expression in the while statement, by employing multiple return statements.

There is also a substantive difference in the logic of the two main() functions. Listing 2.1 uses else clauses, while listing 2.2 uses break and continue statements. The reader can decide which version is easier to read.

Return value versus out parameter

Notice the evaluate() function in listing 2.1. Functions should prefer to return results through their return value, rather than through output parameters. But in this implementation, every time the function is called, a new integer array object is created. While many Java programmers take great comfort in knowing that all objects are effectively free (memory is virtual and garbage collection is automatic); untoward proliferation of objects will always present a scalability issue.

The implementation in listing 2.2 reuses a single object that is supplied by the functions client as a parameter. It is a fact that the Java langauge supports a single parameter passing mode pass by value. It is reality that when an object reference is passed by value, the object to which that reference refers is effectively passed by reference. The object reference copied to the stack when a function is invoked is effectively a pointer. When the object reference is de-referenced in the body of the function, the state of the original object can, and will, be changed. Since arrays are implemented as objects in Java, the outParameter argument in listing 2.2 is an in/out parameter. See Appendix A for an additional discussion of parameter passing in Java.

Listing 2.1 - original implementation

Listing 2.2 - refactored implementation

Iteration 2 - implementation

The abstraction MastermindModel represents the core "business logic" of the game. Its purpose is to encapsulate all the state and behavior necessary to support the illusion that such a thing as a Mastermind specialist exists. What would a Mastermind specialist know? The answer. What should a Mastermind specialist do? Evaluate guesses, and response with grace when the opponent says, I give up.

Should the parse() function specified in the iterations set-up be included in this abstraction? Since it is totally independent of the state maintained by the MastermindModel, lets not couple it to that class. Instead, it can exist as a stand-alone utility function.

Mastermind, as we know it today, consists of four positions and six colors. But in the future, its requirements will most certainly creep. Anticipating this fact of life now, will save time and heartache later. By introducing symbolic constants as a buffer against this kind of inevitability, we should protect our code from becoming brittle, and contracting "hardening of the software arteries." In listing 2.3, the values that would otherwise appear as hard-wired constants in the code, have been captured and hidden behind the names: NUMBER_OF_POSITIONS, and MAXIMUM_VALUE.

Notice the use of the Java standard library to generate random values in the constructor of listing 2.3. It would have been possible to use the static method random() in the class java.lang.Math. But the java.util.Random class provides a much simpler interface. Finding the right component for the problem at hand is always a challenge.

How does a person find something that is not known to exist? How does a person look up the spelling for a word in the dictionary, when you practically have to know how to spell the word before you can look it up? This dilemma of reuse has been captured in Thomas Keffer's two rules of reuse.

There is no substitute for experience, tenacity, and resourcefulness. Experience provides a framework for reuse of general problem solving and specific work products. Tenacity and resourcefulness will cause that framework to grow. I interpret these rules to suggest that whatever you're looking for - it's out there; it's just of matter of knowing where and how to look. Ultimately, the answer may not be a close match. It may be a fairly abstract match like: insight, documentation, or an alternative approach.

Computing the "black" response to a user guess is very straight-forward. Each element in the input array is compared to its counterpart in the answer array.

Listing 2.3

Iteration 3 - implementation

To compute the white response, it would seem natural to set up a housekeeping array for the input array (and another one for the answer array) to keep track of which elements in one have been matched to a counterpart in the other. You will recall that Java automatically initializes the elements of an array to zero, false, or null when the array is allocated. The next natural thing to tackle is probably computing the black count, since it takes precedence over the white count (i.e. pegs in the guess should first be used to increment the black count before they are considered in computing the white count). As black matches are found, the new housekeeping arrays are updated. See the top of the guess() method in listing 2.4.

Now that the black count is complete, and all the contributing pegs in the input and answer have effectively been set aside, let's tackle the white count. We could decide to set up a loop within a loop. The outer loop will traverse the input array, and the inner loop will traverse the answer array. Being careful to skip elements that have previously been matched, whenever a new match is found: the count is incremented, the housekeeping array is updated, and the next iteration of the outer loop is begun. See the comments in listing 2.4 for additional discussion.

Listing 2.4 - original implementation

I wonder if the expression, "Not being able to see the forest for the trees," applies here. We took a very deliberate, step-by-step approach to this programming problem. Is it possible that a different, and perhaps better, solution would have resulted from a less deliberate, more reflective approach? Let's consider an entirely unrelated puzzle that illustrates two very different approaches.

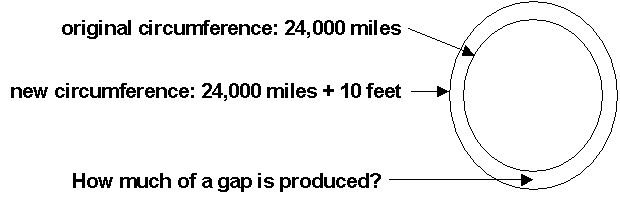

Suppose we wrap the earth with a metal band around its equator. Then we break the metal band and add 10 feet to the original circumference. If the slack that is introduced is evenly distributed around the entire equator, how much slack would there be? Enough for an amoeba, a worm, a snake, or an alligator to slither through?

A deliberate, step-by-step approach might involve a little geometry, a few facts, and a calculator.

That value seems outrageously large! How perfectly unintuitive! Simply adding 10 feet to the circumference, adds over a foot and a half of slack all the way around the equator.

Suppose now that you did not have a calculator, and your threshold of pain for doing arithmetic by hand is too low to attempt this puzzle. Is there some other approach possible?

Let's try to characterize the problem with two simultaneous equations, and then use algebra to solve for the answer.

We've achieved the same result by pushing around some abstract expressions instead of some concrete (and tedious) numbers. But, let's back up to the "X = 5 / π" equation. What happened to the problem's radius?

It's gone! It's irrelevant! The answer is the same whether the sphere employed is the earth, or a basketball.

I would characterize the first approach as exercising brute force, or, focusing on the trees; and the second approach as exercising insight, or, focusing on the forest. The first approach gave us exactly what was asked for - a single answer. The second approach presented us with a surprising epiphany. The first approach required fairly linear effort. In the second approach, the effort was fairly front-end loaded, but the subsequent solution proceeded very rapidly.

Perhaps the first approach is similar to what currently happens in large-scale software development, "Say what you do, and then do what you say." Define a process, and then use the process to mechanically solve your problems in a connect-the-dots, plug-and-chug mindset. This approach facilitates the management of large projects that need to have dozens of developers working in parallel. It makes the command and control more of a science, and less of an art. Unfortunately, it also tends to sterilize the creative process, and short-circuit the "craft-like" quality of software construction. It is fairly hostile to serendipidy and innovation.

The second approach to this geometry puzzle could be characterized as: invest in reflection until transforming insight is gleaned. That style is highly non-linear (i.e. un-manageable). It could well be described as "walking by faith." It requires an unquantifiable amount of wandering in the wilderness. But when the epiphany is received, then the promised land comes quickly. It can be nutured by an organization, but it almost always defies any attempt at being mandated or taught.

Perhaps the appropriate advice for choosing between these two approaches is, "Count the cost." If the primary criteria is manageable, then process should be emphasized. But if the primary criteria is remarkable, then reflection should be afforded the upper hand.

Don't let the urgency of the trees seduce you into neglecting the leverage of the forest.

Let's return to the algorithm for computing the white response. Is there a less direct, but more elegant approach to this problem? In the previous approach, we assumed that computing the black response first was necessary because the black computation takes precedence over the white computation. What if we computed the white response first? Would the algorithm become easier, and could we then reconcile any resulting conflict or overlap?

Let's consider the following equation about the black and white counts

This could be refactored to the form - Given this perspective, we see that the white count can be derived if we can first compute the total count. Lets consider an answer of 1112 and a guess of 3311. The total count is 2 the first 1 in the guess is totally correct, and the second 1 is partially correct. If the answer sequence were 1234 and the guess sequence were 1155, the total count would be 1.

It appears as though the total can be computed by taking the minimum of: the number of 1s in the answer, and the number of 1s in the guess. More generally, the total is the summation of the minimums of the number of occurrences of the digits 0 through 5 in the answer and in the guess. This is modeled in the following table.

Using our previous correct-color-in-the-correct-position algorithm, the black count is 1. The white count can then be derived by subtracting 1 from 2.

Is this new insight a step forward? Is it easy to count the number of occurrences of the digits 0 through 5 in both the answer and the guess? Listing 2.5 is one possible implementation. The housekeeping data structures inputPositionsMatched and answerPositionsMatched have been replaced with answerSums and inputSums. The former is initialized in the constructor, and the latter is initialized in the guess() method.

Listing 2.5 - refactored implementation

This new algorithm has considerably less control logic. The previous algorithm had boundary conditions and dependencies between loops that are not present in the new algorithm. Just like the equator geometry puzzle, where the arithmetic approach generated the answer, but the algebraic approach unveiled remarkable insight; I believe the first guess() implementation met the requirements, while the second implementation demonstrated insight and elegance.

How does one develop insight? Is it nature, or nurture? Does it require left-brain, or right-brain thinking? I think it is a combination of many factors: perspiration, resourcefulness, a low threshold of pain, and a diverse background.

Perspiration. "Genius is one percent inspiration, and ninety-nine percent perspiration." [Thomas Edison] The harder we practice, the luckier we get. [football coach]

Resourcefulness. Intelligent is often used to describe people who have mastered thinking inside the box. I associate resourcefulness with thinking outside the box. Resourceful people see what everyone else has seen, and think what no one else have thought.

A low threshold of pain. I think this is the primary differentiator for inventors. Most people don't recognize, or are not sufficiently moved by, the pain they are subject to on a daily basis. Inventors are acutely intolerant of pain, and are totally consumed until it has been relieved. Software developers need to examine large, cumbersome blocks of code, and not be at peace until a simpler, higher fidelity design is discovered.

A diverse background. At an organizational level, investing in a "multi-disciplinary" approach has proven very successful. The equivalent for a person is a diverse background. The more varied a persons background, the broader their perspective, or point of view. The more perspectives an individual can bring to bear on a problem, the more likely that insight will blossom.
