Command

Intent

Problem

Need to issue requests to objects without knowing anything about the operation being requested or the receiver of the request.

Structure Summary

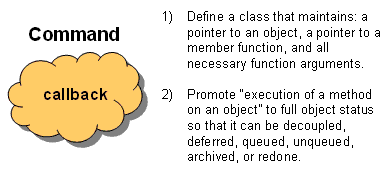

Structure category:   promote X to "full object status"
Similar patterns:   Prototype   Iterator   Mediator   Memento

Discussion

Command decouples the object that invokes the operation from the one that knows how to perform it. To achieve this separation, the designer creates an abstract base class that maps a receiver (an object) with an action (a pointer to a member function). The base class contains an execute() method that simply calls the action on the receiver.

All clients of Command objects treat each object as a "black box" by simply invoking the object's virtual execute() method whenever the client requires the object's "service".

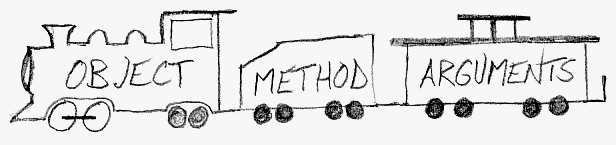

A Command class holds some subset of the following: an object, a method to be applied to the object, and the arguments to be passed when the method is applied. The Command's "execute" method then causes the pieces to come together.

Sequences of Command objects can be assembled into composite (or macro) commands.

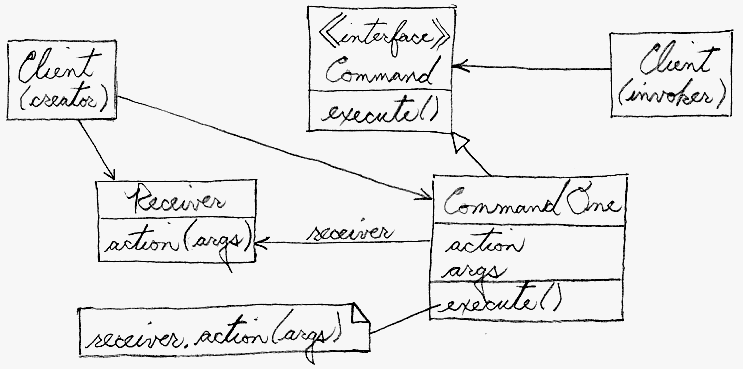

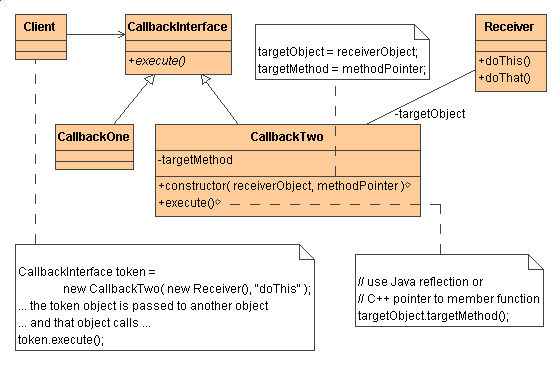

Structure

The client that creates a command is not the same client that executes it. This separation provides flexibility in the timing and sequencing of commands. Materializing commands as objects means they can be passed, staged, shared, loaded in a table, and otherwise instrumented or manipulated like any other object. [Grand, p279]

Command objects can be thought of as "tokens" that are created by one client that knows what need to be done, and passed to another client that has the resources for doing it.

Example

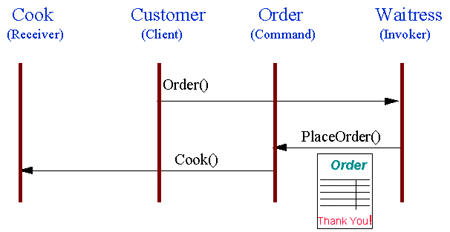

The Command pattern allows requests to be encapsulated as objects, thereby allowing clients to be parameterized with different requests. The "check" at a diner is an example of a Command pattern. The waiter or waitress takes an order or command from a customer and encapsulates that order by writing it on the check. The order is then queued for a short order cook. Note that the pad of "checks" used by each waiter is not dependent on the menu, and therefore they can support commands to cook many different items. [Michael Duell, "Non-software examples of software design patterns", Object Magazine, Jul 97, p54]

Check list

  1. Define a Command interface with a method signature like execute().
  2. Create one or more derived classes that encapsulate some subset of the following: a "receiver" object, the method to invoke, the arguments to pass.
  3. Instantiate a Command object for each deferred execution request.
  4. Pass the Command object from the creator (aka sender) to the invoker (aka receiver).
  5. The invoker decides when to execute().

Before and after

BeforeAfter
// BEFORE - the client has to query the "type" of
// each object, and manually invoke the desired
// method.

// AFTER - the desired method is encapsulated in
// each Command object.

class Giant {
public:
   enum Type { Fee, Phi, Pheaux };
   Giant() {
      m_id = s_next++;
      m_type = (Type) (m_id % 3);
   }
   Type get_type() { return m_type; }
   void fee()    { cout << m_id << "-fee  "; }
   void phi()    { cout << m_id << "-phi  "; }
   void pheaux() { cout << m_id << "-pheaux  "; }
private:
   Type m_type;
   int  m_id;
   static int s_next;
};
int Giant::s_next = 0;

template <typename T>
class Queue {
public:
   Queue() { m_add = m_remove = 0; }
   void enque( T* c ) {
      m_array[m_add] = c;
      m_add = (m_add + 1) % SIZE;
   }
   T* deque() {
      int temp = m_remove;
      m_remove = (m_remove + 1) % SIZE;
      return m_array[temp];
   }
private:
   enum { SIZE = 8 };
   T*  m_array[SIZE];
   int m_add, m_remove;
};

int main( void ) {
   Queue que;
   Giant input[6], *bad_guy;

   for (int i=0; i < 6; i++)
      que.enque( &input[i] );

   for (int i=0; i < 6; i++) {
      bad_guy = que.deque();
      if (bad_guy->get_type() == Giant::Fee)
         bad_guy->fee();
      else if (bad_guy->get_type() == Giant::Phi)
         bad_guy->phi();
      else if (bad_guy->get_type() == Giant::Pheaux)
         bad_guy->pheaux();
   }
   cout << '\n';
}

// 0-fee  1-phi  2-pheaux  3-fee  4-phi  5-pheaux

class Giant {
public:
   Giant()       { m_id = s_next++; }
   void fee()    { cout << m_id << "-fee  "; }
   void phi()    { cout << m_id << "-phi  "; }
   void pheaux() { cout << m_id << "-pheaux  "; }
private:
   int  m_id;
   static int s_next;
};
int Giant::s_next = 0;

class Command {
public:
   typedef void (Giant::*Action)();
   Command( Giant* object, Action method ) {
      m_object = object;
      m_method = method;
   }
   void execute() {
      (m_object->*m_method)();
   }
private:
   Giant* m_object;
   Action m_method;
};

template <typename T>
class Queue {
public:
   Queue() { m_add = m_remove = 0; }
   void enque( T* c ) {
      m_array[m_add] = c;
      m_add = (m_add + 1) % SIZE;
   }
   T* deque() {
      int temp = m_remove;
      m_remove = (m_remove + 1) % SIZE;
      return m_array[temp];
   }
private:
   enum { SIZE = 8 };
   T*  m_array[SIZE];
   int m_add, m_remove;
};

int main( void ) {
   Queue que;
   Command* input[] = { new Command( new Giant, &Giant::fee ),
                        new Command( new Giant, &Giant::phi ),
                        new Command( new Giant, &Giant::pheaux ),
                        new Command( new Giant, &Giant::fee ),
                        new Command( new Giant, &Giant::phi ),
                        new Command( new Giant, &Giant::pheaux ) };

   for (int i=0; i < 6; i++)
      que.enque( input[i] );

   for (int i=0; i < 6; i++)
      que.deque()->execute();
   cout << '\n';
}

// 0-fee  1-phi  2-pheaux  3-fee  4-phi  5-pheaux

Rules of thumb

Chain of Responsibility, Command, Mediator, and Observer, address how you can decouple senders and receivers, but with different trade-offs. Command normally specifies a sender-receiver connection with a subclass.

Chain of Responsibility can use Command to represent requests as objects. [GoF, p349].

Command and Memento act as magic tokens to be passed around and invoked at a later time. In Command, the token represents a request; in Memento, it represents the internal state of an object at a particular time. Polymorphism is important to Command, but not to Memento because its interface is so narrow that a memento can only be passed as a value. [GoF, p346]

Command can use Memento to maintain the state required for an undo operation. [GoF, p242]

MacroCommands can be implemented with Composite. [GoF, p242]

A Command that must be copied before being placed on a history list acts as a Prototype. [GoF, p242]

POSA's Command Processor pattern describes the scaffolding Command needs to support full multilevel undo and redo. [Vlissides, Java Report, Nov 2000, p80]

Two important aspects of the Command pattern: interface separation (the invoker is isolated from the receiver), time separation (stores a ready-to-go processing request that's to be stated later). [Alexandrescu, p101]

Notes

"Memento-Command" - a new pattern by John Vlissides. Presented in Java Report, November 2000, pp70-80. Intent: manage undo state when a command can affect unforseen receivers.
